R52-ODS10-IHW 120-277V DECORA OCCUPANCY SENSOR WALL SWITCH WHITE

PART 262837
SUPPLIER LEVITON MFG CO
SUPPLIER PART # R52-ODS10-IHW
RANK D
SHELF PACK 3
Calculating price...
QUANTITY

About this item

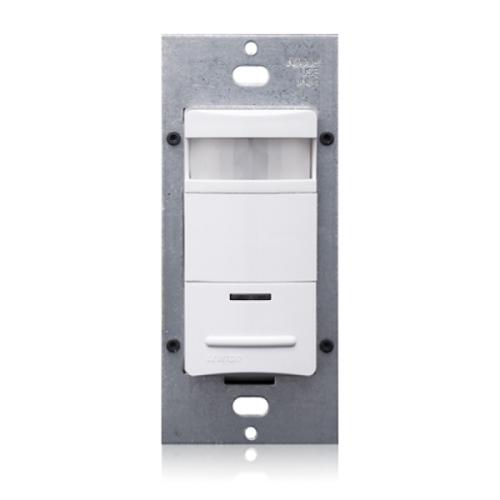

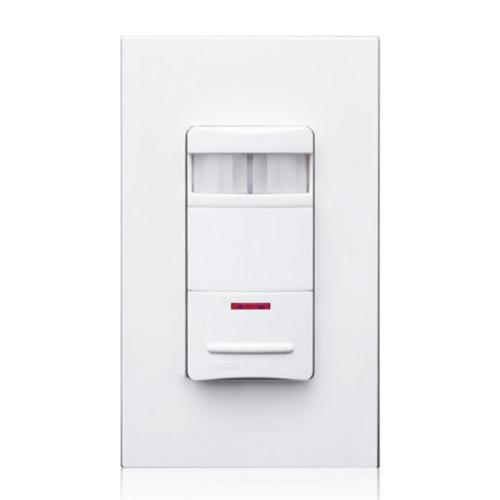

Leviton R52‑ODS10‑IHW – Decora Occupancy Sensor Wall Switch (White):

Upgrade any commercial or residential space with the Leviton R52‑ODS10‑IHW, a premium Decora‑style passive infrared (PIR) occupancy sensor switch engineered for energy efficiency, reliability, and convenience. This intelligently designed wall switch automates lighting control by detecting motion and managing lights without the need for manual activation. Its streamlined low‑profile aesthetic blends seamlessly with modern interiors, while its robust sensor technology provides exceptional performance across a wide variety of environments.

Designed to replace a standard single‑pole wall switch without requiring a neutral wire, the R52‑ODS10‑IHW is ideal for retrofit installations and energy‑conscious upgrades. Its sophisticated PIR detection system uses a segmented Fresnel lens and dual pyrometers to deliver a full 180‑degree field of view, ensuring comprehensive occupancy coverage for medium‑sized rooms. Adjustable modes, customizable time delays, and ambient light sensing capabilities allow tailored control for maximum energy savings and occupant comfort.

Whether implemented in offices, classrooms, conference rooms, or residential spaces, this sensor switch brings a dependable, hands‑free lighting solution that supports modern efficiency standards while maintaining Leviton’s renowned quality and durability.

Key Features

  • Passive Infrared (PIR) Occupancy Detection using a segmented Fresnel lens for precise motion detection.
  • Auto‑ON/Auto‑OFF or Manual‑ON/Auto‑OFF selectable modes for flexible control.
  • Wide 180° field of view providing approximately 2100 sq ft of motion coverage.
  • Dual pyrometers broaden detection range and improve sensor reliability.
  • No neutral wire required, simplifying installation in older buildings.
  • Adjustable time delay from 30 seconds to 30 minutes for custom energy savings.
  • Ambient light override (photocell) prevents lights from turning on when natural light is sufficient.
  • Low‑profile Decora design with vandal‑resistant PIR lens suited for high‑traffic areas.
  • Manual pushbutton for ON/OFF operation at any time.
  • False detection circuitry reduces accidental light activation.
  • Presentation mode keeps lights off during slide or film shows while still detecting occupancy.
  • Compatible with 120–277 VAC, supporting a variety of commercial and residential electrical systems.

Technical Specifications

  • Technology: Passive Infrared (PIR) motion detection
  • Voltage Range: 120/208/220/230/240/277 VAC, 50/60 Hz
  • Load Type: Single‑pole wall switch replacement; 10A latching relay
  • Coverage Area: Up to 2100 sq ft (Major motion: 60' × 40'; Minor motion: 40' × 20')
  • Field of View: 180°, adaptable down to 60° using built‑in blinders
  • Time Delay: Adjustable—30 seconds, 10 minutes, 20 minutes, 30 minutes
  • Ambient Light Override Range: Approximately 2 to 500+ foot‑candles (20–5000+ lux)
  • Operation Modes: Auto‑ON/Auto‑OFF or Manual‑ON/Auto‑OFF (Title 24 compliant)
  • Construction: Low‑profile Decora‑style housing; vandal‑resistant lens
  • Installation: Fits standard wall boxes; no neutral required; gangable with other Decora devices
  • Additional Functions: Vacancy confirmation, false detection prevention, presentation mode

Recommended Applications

The Leviton R52‑ODS10‑IHW is designed for a variety of environments where automated lighting control enhances convenience and energy savings:

  • Office spaces – private offices, open work areas, administrative rooms
  • Classrooms & educational facilities – reduces wasted lighting during unoccupied periods
  • Conference & meeting rooms – ensures instant illumination when occupants enter
  • Child‑care centers – hands‑free operation for enhanced safety and cleanliness
  • Multimedia rooms – use presentation mode to keep lights off during projection
  • Residential spaces – ideal for laundry rooms, hallways, garages, and utility areas
  • Commercial buildings – lounges, storage areas, small retail rooms, and similar spaces

There are currently no resources for this product.

Color White
Brand Leviton Mfg
Certifications UL, CSA
Environment Indoor
Material Plastic
Mounting Type In-Wall
UPC Code 078477553763
Shelf Pack 3
Minimum Order Qty 1
Supplier Name Leviton Mfg Co
