R02-DOS05-1LW 5A 120V 3/WAY DECORA LED OCCUPANCY MOTION SENSOR LIGHT SWITCH WHITE

PART 262828
SUPPLIER LEVITON MFG CO
SUPPLIER PART # R02-DOS05-1LW
RANK D
SHELF PACK 3
Calculating price...
QUANTITY

About this item

Leviton R02‑DOS05‑1LW Decora 3‑Way / Single‑Pole LED Occupancy Motion Sensor Light Switch:

The Leviton R02‑DOS05‑1LW is a versatile Decora‑style LED occupancy motion sensor switch designed for automatic, hands‑free lighting control in residential and light‑commercial spaces. This premium sensor switch uses advanced Passive Infrared (PIR) technology to detect motion and instantly turn lights on, then automatically turn them off after the room is vacant—significantly reducing energy waste.

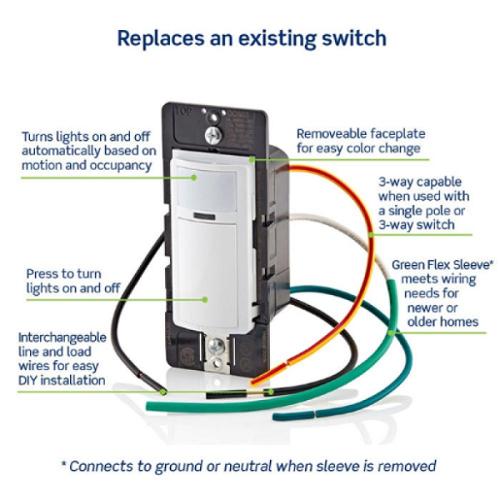

Engineered for flexibility, it supports both single‑pole and 3‑way installations, making it perfect for rooms with one or two switch locations. Its shallow wallbox design and optional neutral wiring allow easy installation in new or older homes. With wide load compatibility and adjustable time‑delay, sensitivity, and ambient light settings, this model provides reliable lighting automation tailored to nearly any space.

Key Features

  • Automatic ON/OFF motion‑activated control for hands‑free lighting
  • Single‑pole or 3‑way operation for one‑ or two‑location lighting control
  • 180° PIR motion detection with up to 900 sq. ft. coverage
  • Wide load compatibility, supporting:
    • 300W LED/CFL
    • 600W incandescent/halogen
    • 400VA magnetic low voltage
    • 400VA electronic low voltage
    • 1/4 HP motor loads
    • 5A resistive loads
  • Adjustable time delay: 1, 5, 10, or 20 minutes
  • Optional neutral wire installation suitable for newer and older wiring
  • Ambient light override prevents lights from turning on when daylight is sufficient
  • User‑friendly programming without removing the wallplate

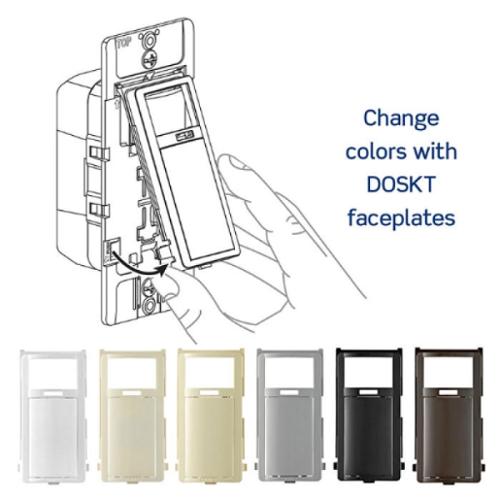

  • Low‑profile Decora design blends seamlessly with modern decor
  • Complies with California Title 24 automatic‑off requirements

Specifications

  • Model: R02‑DOS05‑1LW
  • Sensor Type: Passive Infrared (PIR)
  • Operation Mode: Auto‑On / Auto‑Off (Occupancy)
  • Voltage: 120 VAC
  • Maximum Coverage: 180° field, 900 sq. ft.
  • Load Ratings:
    • 300W LED/CFL
    • 600W incandescent/halogen
    • 400VA ELV/MLV
    • 1/4 HP motor
    • 5A resistive
  • Wiring: Ground required; neutral optional
  • Mounting: Standard wallbox
  • Color: White (Decora‑style)
  • Wallplate: Sold separately

Applications

Perfect for both residential and light‑commercial use, including:

  • Laundry rooms & utility rooms
  • Pantries, closets & storage areas
  • Garages & basements
  • Hallways, stairwells & entryways
  • Workshops & mechanical rooms
  • Spaces where hands‑free activation improves convenience and safety

There are currently no resources for this product.

Brand Leviton Mfg
Color White
Amperage 5 A
Compatible Bulbs LED, CFL, INCANDESCENT, HALOGEN, MLV, ELV
Certification UL LISTED
Field of Detection 180-Degree, 900 SF
UPC Code 078477578872
